AM Flexible Insulating Paper Laminates

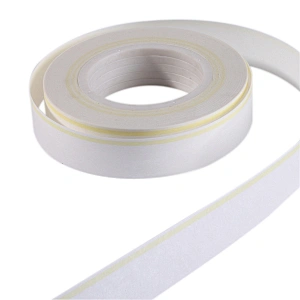

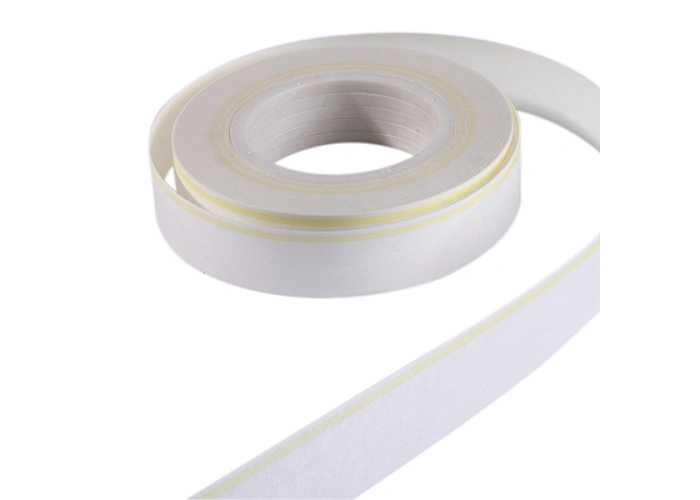

The AM Flexible Laminate is a two-layer flexible composite material, produced by using F-class adhesive to adhere the polyester film (Mylar) with hot rolling Aramid paper (A)

color：

white/customized

Free sample：

Thermal Class：

F 155℃

Available width：

1000mm/customized

Thickness：

0.08mm - 0.41mm

Quantity

Description
Application
Related Product

AM Flexible Laminates

Polyester film with Aramid paper

In accordance with GB/T5591.3.1-2008 and IEC626-2

Description:

The AM Flexible Laminate is a two-layer flexible composite material, produced by using F-class adhesive to adhere the polyester film (Mylar) with hot rolling Aramid paper (A).

Advantages:

It has excellent electrical, mechanical, and superior heat-resistant properties. The performance is totally according with the standard of NM (GB/T5591.3.1-2008), and it has the very similar property to NM. It’s a perfect substitute of NM.

Applications:

The AM composite material is suitable for slot, liner, phase, and turn-to-turn insulation in F-class electrical motors. It can be used as interlayer insulation in transformers and other electrical appliances.

﹥﹥1 AM Aramid Paper Flexible Laminate Technical Data

Type	Nominal Thickness	Tolerance	Nominal Grammage	PET Film Thickness	Tensile Strength Not Bended			Breakdown Voltage room Temp	Elongation
Aramid / Polyester	Nominal Thickness	Tolerance	Nominal Grammage	PET Film Thickness	MD		TD	Breakdown Voltage room Temp	MD	TD
Aramid / Polyester	mm	%	g/㎡	цm	N/10mm		N/10mm	KV	（%）
2-1	0.08	±0.02	95 ±12	25	≥100		≥70	≥5	≥5	≥15
2-2	0.11	±0.02	125±12	50	≥130		≥80	≥7	≥15	≥20
2-3	0.13	±0.02	160±12	75	≥140		≥90	≥9
2-4	0.16	±0.02	190±12	100	≥160		≥100	≥10
2-5	0.18	±0.02	230±12	125	≥180		≥120	≥12	≥20	≥25
2-6	0.21	±0.02	260±31	150	≥200		≥140	≥14	≥20	≥25
2-7.5	0.25	±0.02	320±12	190	≥230		≥200	≥15	≥20	≥50
2-10	0.31	±0.03	390±12	250	≥300		≥280	≥18
2-14	0.41	±0.04	550±12	350	≥340		≥320	≥21
Class F, Adhesive Property 180℃,10min No delamination,blister,or adhesive flow						Temperature Index（T.I）		155℃

﹥﹥2 Test and stock
2.1 Standard: GB/T5591.3.1-2008 and IEC626-2.
2.2 Storage: ≤40℃, dry, clean in warehouse. Avoid fire, heat and sunlight.
2.3 Storage life: 12 months. Still effective if qualified in retest after 12 months.

Applications:

The AM composite material is suitable for slot, liner, phase, and turn-to-turn insulation in F-class electrical motors. It can be used as interlayer insulation in transformers and other electrical appliances
