Diamond Dotted Polyester Mylar Film(DDM) Insulation

Diamond Dotted Polyester Mylar Film(DDM) Insulation

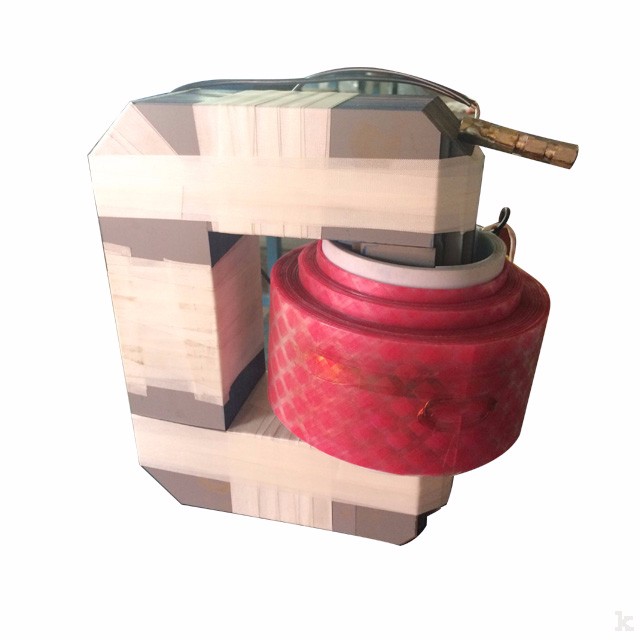

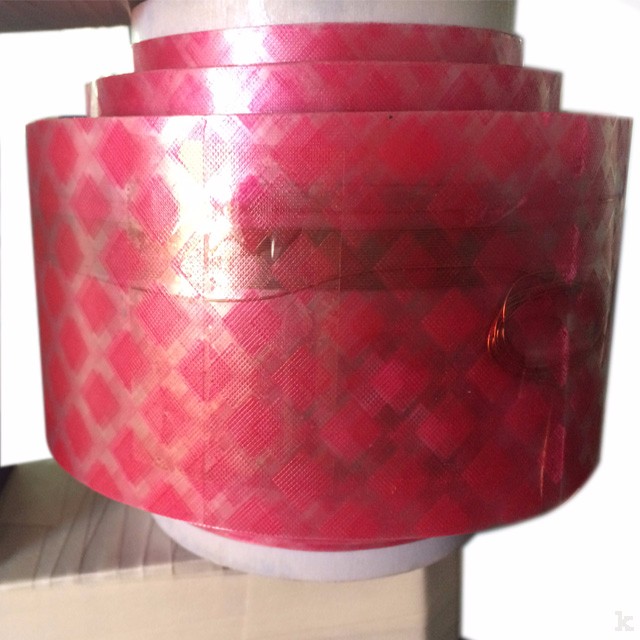

It is produced by coating modified epoxy resin in diamond dot patterns on electrical insulating film.

color：

red/customized

Free sample：

Thermal Class：

B 130℃

Available width：

1000mm/customized

Thickness：

0.05mm - 0.10mm

Quantity

Description
Application
Related Product

Diamond Dotted Polyester Electrical Insulation Film

Description:

It is also known as DPF. The use of this B-stage resin coated film increases the mechanical strength of transformer coils. It is produced by coating modified epoxy resin in diamond dot patterns on electrical insulating film. The size of the dots are carefully designed and arranged to cover only 36% of the surface, remaining 64% free for optimum CFS 6 gas distribution.

Advantages:

After curing, the pre preg resin cures from stage B(pre preg) to stage C(cured), adhering to any metallic surface and creating micro channels for optimal gas distribution. The bonding strength is adequate to support effective gluing in unsupported coil design.

Application:

• Dry type transformer layer insulation
• Oil filled transformer layer insulation
• SF6 high current voltage transformer wire winding insulation or layer insulation film
• Motor slot insulation, or phase insulation film
• Also suitable for Automobile, Electronic application

Item		Unit	Value
Nominal Thickness		mm	0.05	0.075	0.10
Thickness Tolerance		mm	±0.005	±0.01	±0.01
Standard Width		mm	1000mm
Tensile Strength	Lengthwise	Mpa	≥100
	Crosswise		≥90
Breakdown Voltage		KV	≥6	≥6.5	≥7
Bond Strength		Kpa	≥350
Curing Temperature and Time		90℃±5℃/16h or 130℃±5℃/6h
Storage Life		month	6 months, room temperature, dry and well-ventilated environment

Epoxy Fiberglass Mesh Fabric Insulation

Epoxy fiberglass mesh fabric is a kind of insulation material. It is made of basal mesh fabric and epoxy soakage mucus.

Dry Type Transformer Insulator Insulation

Insulators are molded by thermoforming using DMC material through a hydraulic press.

Dog Bone Dry Electrical Insulation Components Material

Glass pultrusion stays, including dogbones, vertical bars, cylindrical batten,coattail batten, stay plate etc.are a type of profile produced by a pultrusion process using an alkali-free glass fiber-impregnated thermosetting resin. lt has high mechanical strength.excellent electrical properties, and flame retardancy, orosion resistance,arc resistance and other advantages. It is mainly used for the ventilation cooling between dry transformers and the use of reactors and wave traps.

Electrical Insulation Tape

Insulation banding tapes is used for electrical and transformer industry, such as heat shrinkable tape, non-alkali fiberglass tape.

AKA Kapton Electrical Insulation Paper

AKA Flexible Laminate is a three-layer flexible composite material, produced by using H-class or C class adhesive to adhere the polyimide film (Kapton) with hot rolling Aramid paper (A).

Class F AMA Flexible Laminate Insulation Paper

AMA Flexible Laminate is a three-layer flexible composite material, produced by using F-class adhesive to adhere the polyester film (Mylar) with hot rolling Aramid paper (A) on both sides.

Epoxy Resin Prepreg DMD Transformer Insulation Paper

Epoxy-resin Prepreg DMD is a three-layer flexible material, F-class adhesive to adhere the two faces of high-melt-point polyester film (Mylar) with hot rolling non-woven polyester fabric (Dacron), then impregnating into heat-resistant epoxy resin, and then cured to B-stage. DMD-P is for short

Composite Polyester Film MM/MMM Insulation Used in Transformer

MM/MMM is a two-layer or three-layer composite polyester film (Mylar), produced by using adhesive to adhere 2 or 3 layer polyester film (Mylar) together
